Flowmeters List

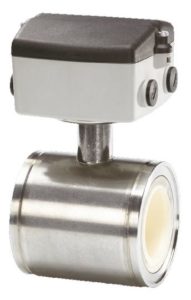

SITRANS F M MAG 1100
SITRANS F M MAG 1100 is a wafer design sensor in stainless steel with highly resistant liners and electrodes and is designed for the general industry environment. The flangeless wafer design meets all flange standards.(Electromagnetic – Pulsed DC meter)
SITRANS F M MAG 3100
SITRANS F M MAG 3100 is an electromagnetic flow sensor with a large variety of liners, electrode material and with grounding electrodes as standard, all this ensures a perfect fit for almost every flow application.(Electromagnetic – Pulsed DC meter)
SITRANS F M MAG 5100W
The SITRANS F M MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, waste water, sewage or sludge applications.(Electromagnetic – Pulsed DC meter)
SITRANS F MAG 8000
The SITRANS F M MAG 8000 program of battery-operated water meters gives you the flexibility to install a reliable water flow meter virtually anywhere without sacrificing accuracy or performance. No mains power is required.(Electromagnetic – Battery-Operated Watermeter)
SITRANS F M TRANSMAG 2 WITH SENSOR 911/E
The high-powered flowmeter consists of the SITRANS F M TRANSMAG 2 transmitter and the sensor SITRANS F M 911/E being the best choice for special applications such as pulsating flow, media with low conductivity and high percentage of solids.(Electromagnetic – High Powered AC meter)
MULTIRANGER 100/200
MultiRanger is a versatile short to medium-range ultrasonic single and multi-vessel level monitor/controller for virtually any application in a wide range of industries.
MAGNETIC FLOWMETER
WE-MF2000 Series magnetic flowmeter is developed by applying the Faraday’s law and Fleming’s rule, formulating a certain magnetic field in the tube in which the fluid is flowing, and utilizing the principle of the proportional change of electric current according to the velocity of the fluid. Power output is DC 4~20mA, RS232C and PULSE. Equipped with the self-diagnosis function, and constructed in the optimum condition according to the situational conditions, it is the best precision flowmeter.
ULTRASONIC FLOWMETER
Ultrasonic flowmeter measures converts the electric signals of Parshall Flum or Weir level measured by ultrasonic sensors into fluid flows by using the Micro Processor. Two kinds – single-body type WE-PF2000US and separate type WE-PF2000UC – can be selected depending on the situational conditions.
FLOAT TYPE FLOWMETER
FLOAT flowmeter measures converts the electric signals of Parshall Flum or Weir level measured by FLOAT sensors into fluid flows by using the Micro Processor.
Two kinds – Single-body type WE-PF2000MS and separate type WE-PF2000MP – are selectable depending on the situational conditions.
Two kinds – Single-body type WE-PF2000MS and separate type WE-PF2000MP – are selectable depending on the situational conditions.
